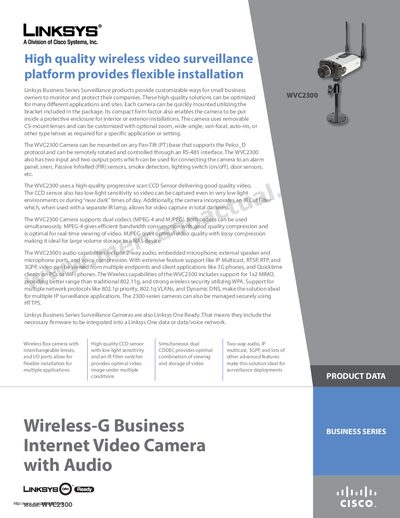

The Linksys Business Series WVC2300 is a high-quality wireless video surveillance platform that provides flexible installation options. This product can be customized for various applications and sites, allowing for quick mounting and installation inside or outside a protective enclosure. The camera uses removable CS-mount lenses and can be customized with optional zoom, wide-angle, vari-focal, auto-iris, or other types of lenses as needed for specific applications or settings. The WVC2300 Camera can be mounted on any Pan-Tilt (PT) base that supports the Pelco_D protocol and can be remotely rotated and controlled through an RS-485 interface. The WVC2300 also features two input and two output ports for connecting the camera to alarm panels, sirens, Passive InfraRed (PIR) sensors, smoke detectors, lighting switches, door sensors, and more. The camera utilizes a high-quality progressive scan CCD sensor to deliver good quality video, even in low light environments or during dark times of day. Additionally, it incorporates an IR Cut Filter to enhance image quality when necessary.
The WVC2300 is a wireless business internet video camera with audio, designed for small‑business surveillance. It features a progressive‑scan CCD sensor, dual video codecs, two‑way audio, and flexible I/O for alarms and sensors.
This manual covers product specifications, mounting options, network and protocol setup, video and audio configuration, motion detection, and maintenance information, along with a quick installation guide and package contents.
| Sensor | 1/4" Progressive CCD, 0.4 lux @ F1.7 |
|---|---|
| Lens | CS‑Mount, Fixed Focus, 500 mm‑∞ (included lens) |
| Field of View | 60° (included lens) |
| Video Resolution | 640×480 (VGA), 320×240 (QVGA), 160×120 (QQVGA) |
| Frame Rate | 1 to 30 fps selectable |
| Audio | 2‑way audio, built‑in mic (‑40 dB + 3 dB), 3.5 mm mic input |
| Power | External 12 V / 1 A adapter, 10 W consumption |
The camera supports dual codecs: MPEG‑4 Simple Profile and MJPEG, and can stream both simultaneously.
It can be mounted on any Pan‑Tilt (PT) base that supports the Pelco_D protocol and includes a mounting bracket.
Supported protocols include TCP/IP, HTTP, DHCP, SMTP, FTP, NTP, DNS, UPnP, RTP, RTSP, DDNS, and VLAN/QoS features.
The camera requires a 12 V / 1 A external power adapter, consuming about 10 W.
