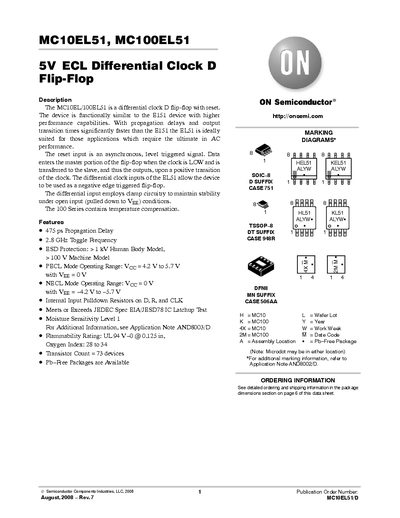

The MC10EL51 is a differential clock D flip-flop with reset. The device has higher performance capabilities compared to the E151, with significantly faster propagation delays and output transition times.
The MC10EL51 and MC100EL51 are 5 V ECL differential clock D flip‑flops with asynchronous reset. They feature fast propagation delay, high toggle frequency, and built‑in ESD protection, making them suitable for high‑speed AC applications.
The document lists electrical characteristics (propagation delay, toggle frequency, supply current, output voltage levels), maximum ratings (output current, temperature range), pin assignments, ordering options, and detailed package dimensions for SOIC‑8, TSSOP‑8, and DFN‑8 packages. Application notes and ordering information are also included.
| Propagation Delay | 475 ps |
|---|---|
| Toggle Frequency | 2.8 GHz |
| Supply Current (typical) | 24‑36 mA |
| Continuous Output Current | 50 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| ESD Protection | > 1 kV HBM, > 100 V MM |
The propagation delay is 475 ps.
The devices can toggle up to 2.8 GHz.
It can drive a continuous output current of 50 mA.
The device operates from –40 °C to +85 °C.
