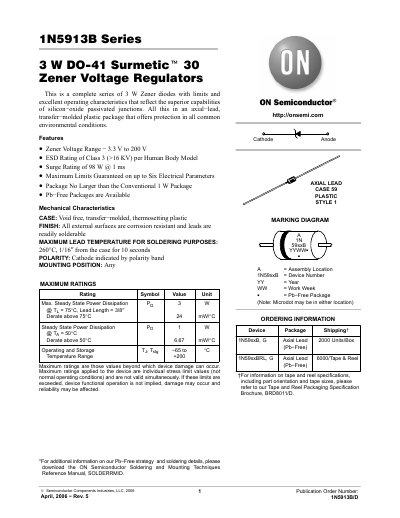

This is a complete series of 3W Zener diodes with excellent operating characteristics and limits that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions.
The 1N5913B Series comprises 3 W axial‑lead Zener diodes housed in a DO‑41 transfer‑molded plastic package. They offer a wide Zener voltage range from 3.3 V to 200 V, Class 3 ESD rating (>16 kV), and a surge capability of 98 W for 1 ms.
The document provides electrical characteristics, package dimensions, thermal derating curves, and application notes for accurate junction‑temperature calculations. Ordering information and legal notices are also included.
| Zener Voltage Range | 3.3 V to 200 V |
|---|---|
| Maximum Power Dissipation | 3 W (steady‑state) |
| ESD Rating | Class 3 (>16 kV) per Human Body Model |
| Surge Rating | 98 W @ 1 ms |
| Maximum Lead Temperature for Soldering | 260 °C (10 s) |
| Operating Temperature Range | -65 °C to +200 °C |
The series covers Zener voltages from 3.3 V up to 200 V.
Each device can dissipate up to 3 W continuously.
It meets Class 3 ESD rating, exceeding 16 kV in the Human Body Model.
The diode can handle a surge of 98 W for 1 ms.
