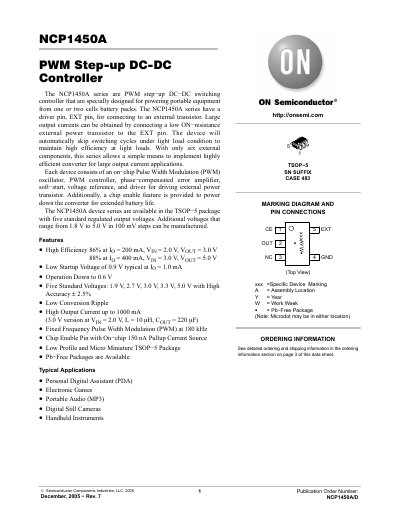

ON Semiconductor NCP1450A PWM Step‑up DC‑DC Controller Handbook

NCP1450A PWM Step-up DC-DC Controller

Brand: ON Semiconductor
Document type: Datasheet
Language: English
Pages: 22
File format: PDF
File size: 220 KB
Published: 08 May, 2012
Updated: 01 October, 2023
Model: NCP1450A
MD5 checksum: A4B482E4F0149B2F846BCF6611AD1ABD
PDF: ON Semiconductor NCP1450A PWM Step‑up DC‑DC Controller Handbook PDF

About this manual

The NCP1450A series are PWM step‑up DC‑DC switching controllers designed for portable equipment powered from one or two battery cells. The device integrates a PWM oscillator, controller, error amplifier, soft‑start, voltage reference and a driver for an external power transistor, requiring only six external components for a high‑efficiency converter.

Typical applications include PDAs, electronic games, portable audio, digital cameras and handheld instruments. The datasheet includes ordering information, pin descriptions, electrical characteristics, maximum ratings, and evaluation‑board details, along with package dimensions for the TSOP‑5 package.

What's inside

Features
Typical Applications
Ordering Information
Pin Connections
Electrical Characteristics
Maximum Ratings
Oscillator Frequency
Efficiency
Evaluation Board
Package Dimensions

Specifications

Switching Frequency	180 kHz
Maximum Output Current	up to 1000 mA (3.0 V version)
Efficiency (200 mA, 2.0 V → 3.0 V)	86 %
External Components Required	Six

Frequently asked questions

What is the typical switching frequency of the NCP1450A?

The controller operates at a fixed PWM frequency of 180 kHz.

How many external components are needed to build a converter with the NCP1450A?

Only six external components are required.
