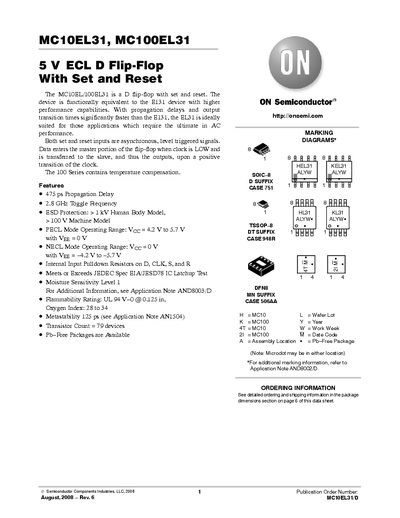

MC10EL31, MC100EL31 5 V ECL D Flip-Flop With Set and Reset
The MC10EL31 and MC100EL31 are 5 V ECL D flip‑flops with asynchronous set and reset inputs. They offer fast propagation delays and high toggle frequencies, making them suitable for high‑speed AC applications.
The document lists electrical characteristics (propagation delay, toggle frequency, ESD protection), maximum ratings, DC and AC performance tables, pin assignments, ordering information for multiple package types (SOIC‑8, TSSOP‑8, DFN8), and detailed mechanical dimensions.
| Propagation Delay | 475 ps |
|---|---|
| Maximum Toggle Frequency | 2.8 GHz |
| ESD Protection (Human Body Model) | > 1 kV |
| Continuous Output Current | 50 mA |
| Operating Temperature Range | -40 to +85 °C |
It is a 5 V ECL D flip‑flop with set and reset inputs.
The propagation delay is 475 ps.
The device can toggle up to 2.8 GHz.
