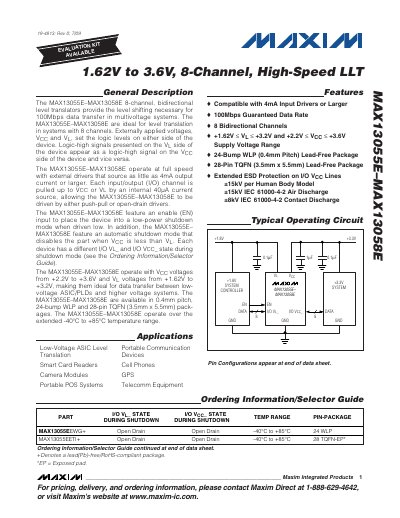

The MAX13055E–MAX13058E are 8-channel, bidirectional level translators that provide the level shifting necessary for 100Mbps data transfer in multivoltage systems.
The MAX13055E–MAX13058E family provides eight bidirectional level‑translation channels for high‑speed (100 Mbps) data transfer in multivoltage systems. External VCC and VL pins set the logic levels on each side of the device, and an enable (EN) pin allows low‑power shutdown.
The devices operate from +2.2 V to +3.6 V (VCC) and +1.62 V to +3.2 V (VL), are available in 24‑bump WLP and 28‑pin TQFN packages, and are rated for -40 °C to +85 °C. Internal 40 µA pull‑up sources and rise‑time accelerator stages give fast transitions without external pull‑up resistors.
| Number of channels | 8 |
|---|---|
| Maximum data rate | 100 Mbps |
| VCC supply range | +2.2 V to +3.6 V |
| VL supply range | +1.62 V to +3.2 V |
| Operating temperature range | -40 °C to +85 °C |
| Package options | 24‑bump WLP (0.4 mm pitch) or 28‑pin TQFN (3.5 mm × 5.5 mm) |
| Enable (EN) input | Provides low‑power shutdown when driven low |
It supports up to 100 Mbps data transfer.
VCC can be from +2.2 V to +3.6 V and VL from +1.62 V to +3.2 V.
The device provides eight bidirectional channels.
It is rated for -40 °C to +85 °C.
