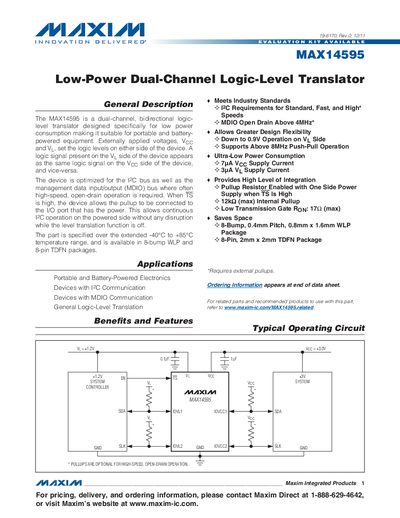

The MAX14595 is a low-power dual-channel logic-level translator designed specifically for low power consumption, making it suitable for portable and battery-powered equipment. The device is optimized for the I2C bus as well as the management data input/output (MDIO) bus where often high-speed, open-drain operation is required. When TS is high, the device allows the pullup to be connected to the I/O port that has the power. This allows continuous I2C operation on the powered side without any disruption while the level translation function is off. The part is specified over the extended -40NC to +85NC temperature range, and is available in 8-bump WLP and 8-pin TDFN packages.
The MAX14595 is a dual‑channel, bidirectional logic‑level translator designed for low‑power, portable and battery‑powered applications. It supports both I²C and MDIO buses and offers optional pull‑up resistors on the powered side when TS is high.
The device is offered in two compact packages—an 8‑pin 2 mm × 2 mm TDFN and an 8‑bump 0.8 mm × 1.6 mm WLP—making it suitable for space‑constrained designs.
| Package Options | 8‑pin TDFN (2 mm × 2 mm) or 8‑bump WLP (0.8 mm × 1.6 mm) |
|---|
It is offered in an 8‑pin 2 mm × 2 mm TDFN package and an 8‑bump 0.8 mm × 1.6 mm WLP package.
