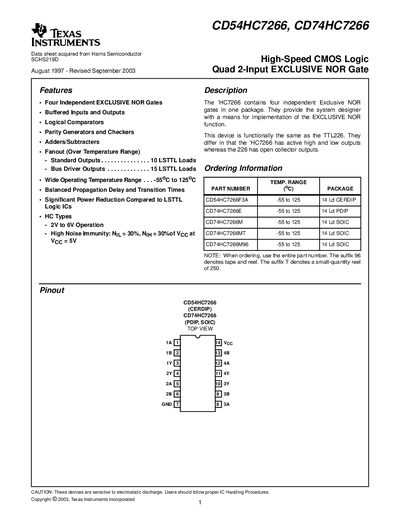

This document is about 'HC7266 data sheet, which introduces the features of the product, including four independent EXCLUSIVE NOR gates, buffered inputs and outputs, logical comparators, parity generators and checkers, adders/subtracters, standard outputs and bus driver outputs, operating temperature range, propagation delay and transition times, power consumption, HC types, working voltage and noise immunity.
The CD74HC7266 contains four independent exclusive‑NOR gates in one package, providing designers a means to implement exclusive‑NOR functions. It offers buffered inputs and outputs, logical comparators, parity generators, and low power consumption compared to LSTTL logic.
The device operates over a wide temperature range (-55 °C to 125 °C) and supports supply voltages from 2 V to 6 V (HC types). Electrical specifications include propagation delays of 115 ns (typ) at 2 V, input high voltage of 1.5 V, input low voltage of 0.5 V, and a maximum output current of ±25 mA per pin. Packaging options include PDIP, SOIC, and tape‑and‑reel formats.
| Supply Voltage Range (HC types) | 2 V to 6 V |
|---|---|
| Operating Temperature Range | -55 °C to 125 °C |
| Propagation Delay (typ) at 2 V | 115 ns |
| Input High Voltage (V IH) at 2 V | 1.5 V |
| Input Low Voltage (VIL) at 2 V | 0.5 V |
The device operates from –55 °C to 125 °C.
It supports a supply voltage of 2 V to 6 V.
The chip contains four independent exclusive‑NOR gates.
