MC74AC02 and MC74ACT02 are quad 2-input NOR gates. They have 24mA output source/sink current and ′ACT02 has TTL compatible inputs. Pb-free packages are available.
The MC74AC02 and MC74ACT02 are quad 2‑input NOR gates offered by ON Semiconductor. They provide TTL‑compatible inputs (ACT02) and can source or sink up to 24 mA per output. The devices are supplied in Pb‑free 14‑lead packages such as PDIP, SOIC and TSSOP.

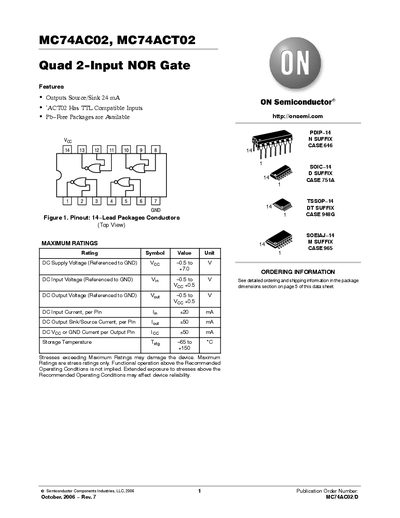

The datasheet lists maximum ratings, recommended operating conditions, DC and AC characteristics, ordering information, and detailed package dimensions for each package style. It also includes marking diagrams and notes on soldering and mounting.
| Output Source/Sink Current | 24 mA |
|---|---|
| Maximum Output Current per Pin | 50 mA source / 50 mA sink |
Each output pin can source up to 50 mA and sink up to 50 mA.
