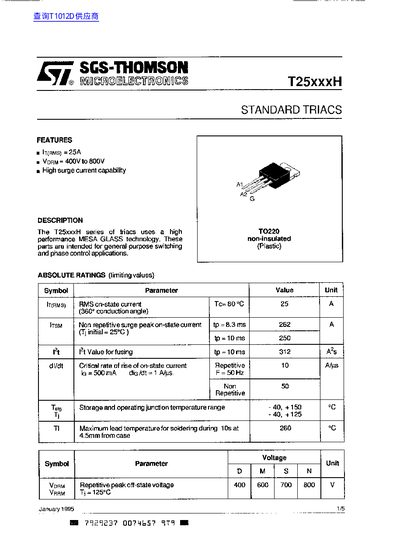

The T25xxxH series of standard triacs is intended for general‑purpose switching and phase‑control applications. It uses high‑performance MESA glass technology and is supplied in a non‑insulated plastic package.
Key specifications include a 25 A RMS on‑state current, peak off‑state voltages up to 800 V, and thermal resistances of 60 °C/W (junction‑to‑ambient) and 2 °C/W (junction‑to‑case, DC). Mechanical data such as package dimensions and weight are also provided.
| RMS on‑state current | 25 A |
|---|---|
| Peak off‑state voltage (repetitive) | 400 V – 800 V |
| Junction‑to‑case thermal resistance (DC) | 2 °C/W |
| Package type | T0220 non‑insulated (plastic) |
The maximum RMS on‑state current is 25 A at an ambient temperature of 80 °C.
It supports repetitive peak off‑state voltages of 400 V, 600 V, 700 V, and 800 V.
The device is housed in a T0220 non‑insulated plastic MESA glass package.
