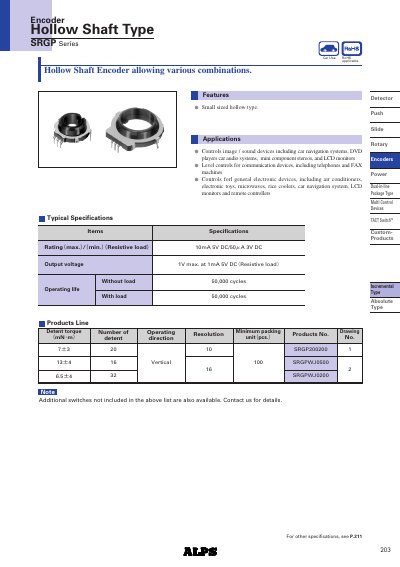

This document introduces the detailed parameters of SRGP series Hall potentiometers, including product type, resolution, output voltage, operating voltage, service life, operating direction, anti-lock torque, etc.
The SRGP series includes hollow‑shaft rotary encoders designed for a wide range of electronic devices such as car navigation systems, DVD players, audio systems, LCD monitors, and household appliances. Both incremental and absolute types are available, with options for 5 V DC or 3 V DC supply and a rated life of 50,000 cycles.
Key specifications cover electrical performance (output voltage, resistive load), mechanical characteristics (detent torque, dimensions, mounting hole patterns), and environmental ratings (operating temperature range, humidity, vibration). The encoders comply with RoHS standards and are offered in several part numbers, e.g., SRGP200200, SRGPWJ0500, and SRGPWJ0200.
| Operating voltage | 5 V DC / 3 V DC |
|---|---|
| Rated life (no load) | 50,000 cycles |
| Maximum output voltage (resistive load) | 1 V max at 1 mA |
| Operating temperature range | -40 °C to +85 °C |
The encoders can be powered with either 5 V DC or 3 V DC.
They are rated for up to 50,000 cycles of operation.
Both incremental and absolute type rotary encoders are offered.
Yes, they are RoHS compliant.
