This document describes the product specifications of a slide switch produced by ALPS ELECTRIC CO., LTD. The slide switch is suitable for low current circuits in electronic devices and features good surface finishing and corrosion resistance.

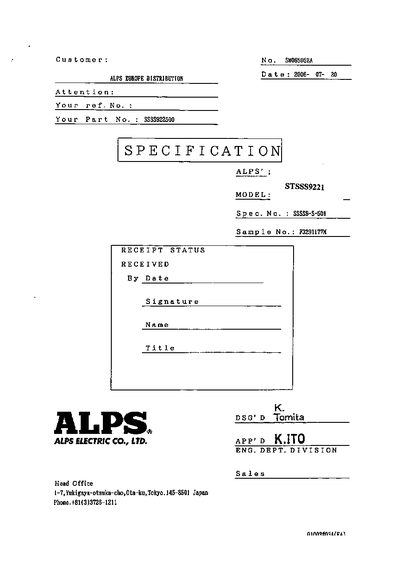

This document outlines the technical specifications of the ALPS STSSS9221 slide switch, including electrical ratings, mechanical dimensions, and environmental limits. It also describes the required test procedures for voltage proof, insulation, and contact resistance.
Additional sections cover operating temperature ranges, recommended soldering practices, and precautionary measures for long‑term storage. A circuit diagram and reference drawings are provided for integration into electronic equipment.
| Maximum switching voltage (AC) | 500 V AC |
|---|---|
| Maximum load current (Resistive) | 0.5 A |
The switch is rated for a voltage proof test of 500 V AC.
The operating temperature range is –40 °C to +85 °C.
The switch shall be operated for 10,000 cycles at 15‑20 cycles per minute.
