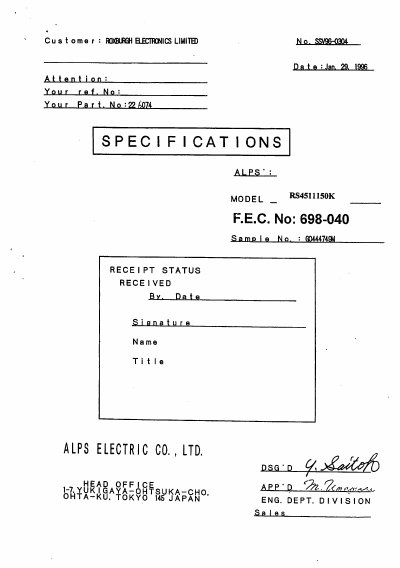

This document is the specification of RS4511150K potentiometer, including overall resistance, minimum resistance, tolerance, power, rated voltage, dielectric test, insulation resistance, sliding life test and other information.
This document provides the full set of specifications for the Alps RS4511150K slide potentiometer, covering electrical parameters such as overall resistance tolerance, rated power, and voltage limits, as well as mechanical characteristics like travel, operating force, and lever strength. It also includes marking information, mounting details, and precautionary notes for proper installation and use.
Key performance data include a rated power of 0.25 W, a maximum operating voltage of AC 200 V / DC 10 V, a dielectric test rating of 300 V AC at 50 Hz, and a sliding life of 15,000 cycles. Mechanical limits such as operating force (30‑250 gf) and lever strength (up to 5 kgf) are also defined, along with dimensional tolerances for mounting.
| Overall resistance tolerance | ±20 % |
|---|---|
| Rated power | 0.25 Watts |
| Maximum operating voltage | AC 200 V, DC 10 V |
| Dielectric test rating | 300 V AC, 50 Hz, 1 min |
| Insulation resistance | >100 MΩ |
| Sliding life test | 15,000 cycles |
| Operating force | 30‑250 gf |
The rated power is 0.25 Watts.
It can handle up to 200 V AC and 10 V DC.
It is rated for 15,000 sliding cycles.
The overall resistance tolerance is ±20 %.
