Featured Switch disconnector manuals

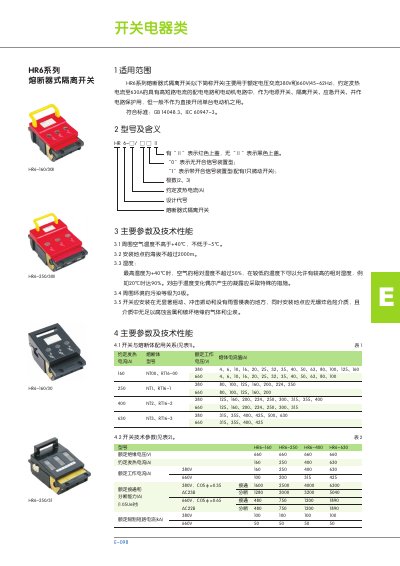

Haima HR6 Series Fuse Type Isolating Switch Manual
This manual describes the HR6 series fuse type isolating switches, which are intended for use in AC 380 V and 660 V distribution circuits with heating currents up to 630 A. It covers the switch’s rated voltages, short‑circuit capabilities, environmental limits, and the relationship between the switch and compatible fuse types.
Installation details include the plastic construction, mounting hole patterns, auxiliary contacts, and the procedure for replacing the fuse cartridge. The document also lists ordering requirements such as type features, voltage level, current rating, pole number, operation mode, and quantity. This manual is written in Chinese.
Covers: Technical Parameters · Dimensions and Installation · Switch and Fuse Compatibility · Ordering Information · Application Scope · Auxiliary Switch Ratings

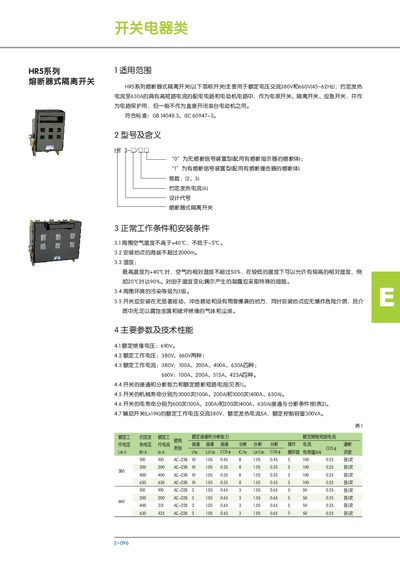

HR5 Fuse-Type Isolating Switch Manual
This manual describes the HR5 series fuse-type isolating switch, intended for use as a power, isolation, and emergency switch in distribution and motor circuits with rated voltages of 380 V or 660 V AC (45‑62 Hz). It outlines the applicable standards, operating limits, and environmental requirements.
Key technical data such as rated insulation voltage, working currents, mechanical and electrical life, and auxiliary switch ratings are listed, along with physical dimensions, installation guidelines, and ordering instructions. This manual is written in Chinese.
Covers: Scope · Model and Designation · Operating and Installation Conditions · Technical Specifications · Physical Dimensions · Ordering Information

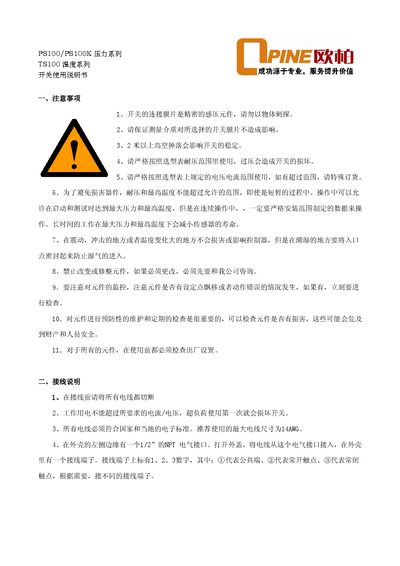

Opine PS100/PS100K & TS100 Switch User Manual
This manual outlines important safety precautions for the PS100/PS100K pressure series and TS100 temperature series switches, including handling of the delicate pressure membrane, limits on drop height, and adherence to voltage and pressure ratings. It also advises regular preventive maintenance and monitoring of the device.
Detailed wiring instructions, installation guidelines, and setting procedures are provided, covering wire size recommendations, connection to the 1/2" NPT electrical interface, terminal assignments, and adjustment of the set point using a calibration bench and multimeter. Warranty and after‑sales service information are included at the end. This manual is written in Chinese.
Covers: Precautions · Wiring Instructions · Setting Procedure · Installation · Setting Range · Warranty
Latest Switch disconnector manuals
ABB SHD200 Switch disconnector
The SHD 200 extends the proven System pro M compact
Haima HR6 Series Fuse Type Isolating Switch Manual
User Manual 2 pages · 1.7 MB · ZHThe Haima HR6 series fuse type isolating switch manual provides technical parameters, dimensions, installation guidelines, and ordering information.
HR5 Fuse-Type Isolating Switch Manual
User Manual 2 pages · 1.2 MB · ZHThe HR5 fuse-type isolating switch manual provides specifications, installation conditions, and ordering information for 380 V/660 V models.
Opine PS100/PS100K & TS100 Switch User Manual
User Manual 2 pages · 183 KB · ZHThe Opine PS100/PS100K and TS100 switch manual provides safety precautions, wiring, installation, and setting instructions.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in Switch disconnector manuals
What is the rated working voltage of the HR6 series isolating switch?
The switch is rated for 380 V or 660 V AC.
What information must be provided when ordering the HR6 switches?
The order must specify the switch’s type features, voltage level, current rating, pole number, operation mode, and quantity.
What voltage levels are the HR5 isolating switches rated for?
They are rated for AC 380 V and 660 V, 45‑62 Hz.
How many mechanical operations can the switch perform at 100 A?
It can perform 3000 mechanical operations at 100 A.
What safety precautions should be taken when handling the switch?
Do not probe the pressure membrane with objects, ensure the measurement medium does not affect the membrane, avoid drops over 2 m, and stay within the specified voltage and pressure limits.
How should the switch be wired?
Cut all wires before connecting, use a maximum wire size of 14 AWG, connect to the 1/2" NPT electrical interface, and attach wires to terminals 1 (common), 2 (normally open), and 3 (normally closed) as required.
