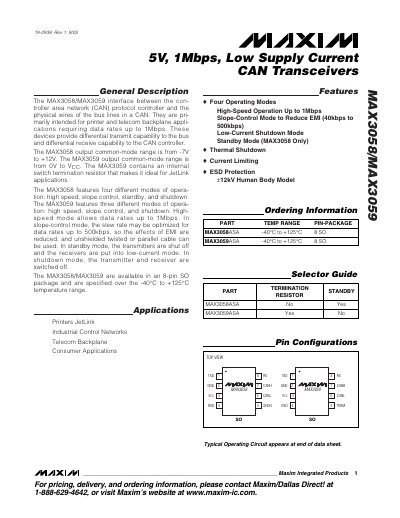

MAX3058/MAX3059 are MAXIM CAN Bus transceivers that support up to 1Mbps data rate. They are suitable for printers, JetLink industrial control networks, telecom backplanes, and consumer applications.
The MAX3058 and MAX3059 are 5 V CAN transceivers designed for printer and telecom backplane applications requiring up to 1 Mbps data rates. They offer differential transmit and receive capabilities, with the MAX3058 supporting four operating modes (high‑speed, slope‑control, standby, shutdown) and the MAX3059 supporting three (high‑speed, slope‑control, shutdown).\n\nKey features include low supply current (as low as 1 µA in shutdown), wide common‑mode voltage ranges, internal termination for the MAX3059, and protection against over‑temperature and ESD. The devices are supplied in an 8‑pin SO package and operate from –40 °C to +125 °C.
| Supply current (dominant state) | 40 mA |
|---|---|
| Supply current (recessive state) | 2 mA |
| Standby mode current (MAX3058) | 15 µA |
| Operating temperature range | -40 °C to +125 °C |
| Package | 8‑pin SO |
| Common‑mode voltage range (MAX3058) | -7 V to +12 V |
| Common‑mode voltage range (MAX3059) | 0 V to VCC |
| Maximum data rate | 1 Mbps |
The MAX3058 operates with a common‑mode voltage range of –7 V to +12 V.
The MAX3058 supports four operating modes: high‑speed, slope‑control, standby, and shutdown.
Both devices are supplied in an 8‑pin SO (Small‑Outline) package.
