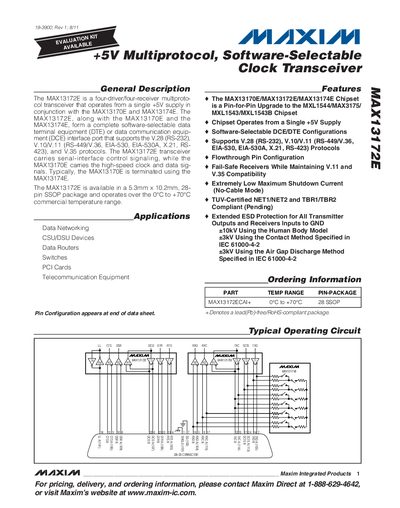

The MAX13172E is a four-driver/four-receiver multiproto- col transceiver that operates from a single +5V supply in conjunction with the MAX13170E and MAX13174E.
The MAX13172E is a four‑driver/four‑receiver multiprotocol transceiver that operates from a single +5 V supply and supports V.28 (RS‑232), V.10/V.11 (RS‑449/V.36, EIA‑530, EIA‑530A, X.21, RS‑423), and V.35 protocols. It works together with the MAX13170E and MAX13174E to form a complete DTE/DCE interface.
The device is offered in a 28‑pin SSOP package (5.3 mm × 10.2 mm) and is rated for operation from 0 °C to 70 °C. Ordering information, package outlines, and additional thermal data are available from Maxim’s website or by contacting Maxim Direct.
| Supply Voltage (Voc) | -0.3 V to +6 V |
|---|---|
| Operating Temperature Range | 0 °C to 70 °C |
| Package Type | 28‑pin SSOP (5.3 mm × 10.2 mm) |
| ESD Protection (Human Body Model) | +10 kV |
| Maximum Shutdown Current | Extremely low (no‑cable mode) |
It supports V.28 (RS‑232), V.10/V.11 (RS‑449/V.36, EIA‑530, EIA‑530A, X.21, RS‑423), and V.35 protocols.
The device is supplied in a 28‑pin SSOP package measuring 5.3 mm × 10.2 mm.
It is rated for operation from 0 °C to 70 °C.
Contact Maxim Direct at 1‑888‑629‑4642 or visit Maxim’s website at www.maxim-ic.com.
