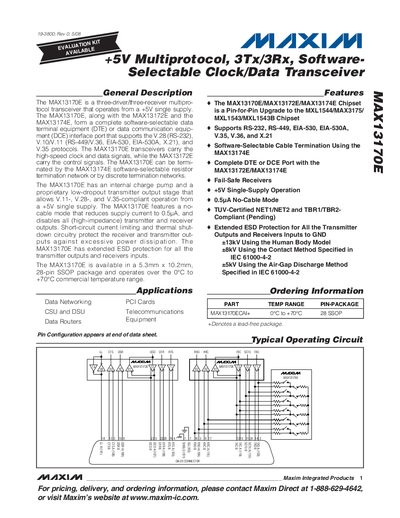

MAX13170E is a three-driver/three-receiver multiprotocol transceiver that operates from a +5V single supply. MAX13170E, along with MAX13172E and MAX13174E, form a complete software-selectable data terminal equipment (DTE) or data communication equipment (DCE) interface port that supports the V.28 (RS-232), V.10/V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21), and V.35 protocols. The MAX13170E transceivers carry the high-speed clock and data signals, while the MAX13172E carry the control signals. The MAX13170E can be terminated by the MAX13174E software-selectable resistor termination network or by discrete termination networks. The MAX13170E has an internal charge pump and a proprietary low-dropout transmitter output stage that allows V.11-, V.28-, and V.35-compliant operation from a +5V single supply. The MAX13170E features a no-cable mode that reduces supply current to 0.5µA, and disables all (high-impedance) transmitter and receiver outputs. Short-circuit current limiting and thermal shutdown circuitry protect the receiver and transmitter outputs against excessive power dissipation. The MAX13170E has extended ESD protection for all the transmitter outputs and receivers inputs. The MAX13170E is available in a 5.3mm x 10.2mm, 28-pin SSOP package and operates over the 0°C to +70°C commercial temperature range.
The MAX13170E is a three‑driver/three‑receiver multiprotocol transceiver that operates from a single +5 V supply. It provides software‑selectable clock and data transmission for DTE/DCE applications and can be terminated by the companion MAX13174E or discrete networks. The device includes a charge‑pump, low‑dropout output stage, no‑cable mode, and extensive ESD protection.
Typical applications include data networking PCI cards, CSU/DSU telecommunications equipment, and data routers. The chip is offered in a 28‑pin SSOP package (5.3 mm × 10.2 mm) and is rated for operation from 0 °C to +70 °C. Electrical specifications, absolute maximum ratings, and test circuits are provided in the document.
| Package Type | 28‑pin SSOP (5.3 mm × 10.2 mm) |
|---|---|
| ESD Protection (Human Body Model) | 13 kV |
It supports RS‑232 (V.28), V.35, V.11 (RS‑449/EIA‑530/X.21) and can be used in DTE/DCE configurations.
It is supplied in a 28‑pin SSOP package measuring 5.3 mm × 10.2 mm.
