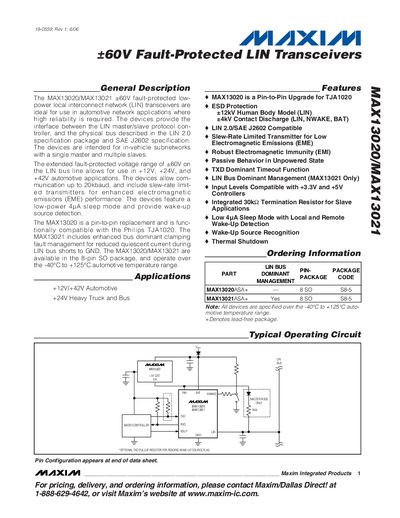

The MAX13020/MAX13021 ±60V fault-protected low-power local interconnect network (LIN) transceivers are ideal for use in automotive network applications where high reliability is required.
The MAX13020 and MAX13021 are +60 V fault‑protected LIN transceivers designed for automotive network applications. They support LIN 2.0/SAE J2602, operate over a wide voltage range, and include features such as slew‑rate‑limited transmitters, low‑power sleep mode, and wake‑up source detection.
The document lists absolute maximum ratings, detailed electrical and timing characteristics, typical operating curves, functional block diagrams, pin configurations, and package dimensions. It also provides ordering information and ESD protection ratings for designers.
| Supply Voltage (VBAT) Operating Range | 5.0 V – 38.0 V |
|---|---|
| Sleep Mode Current | 4 pA |
| Maximum LIN Bus Voltage | +60 V |
| ESD Protection (Human Body Model) | +12 kV |
The devices can tolerate a continuous LIN bus voltage of up to +60 V.
The VBAT supply voltage can be between 5.0 V and 38.0 V.
The sleep mode current is specified as 4 pA.
The LIN pins are protected to a Human Body Model rating of +12 kV.
