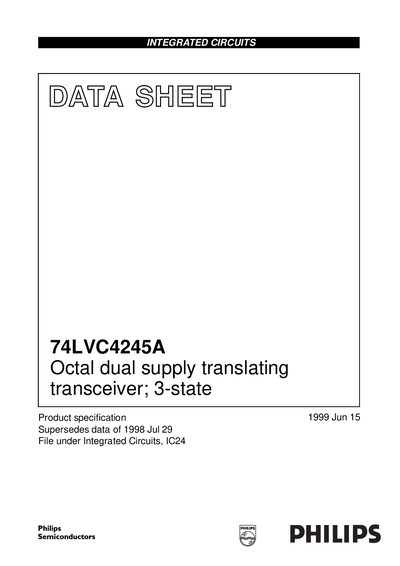

This datasheet provides detailed information on the 74LVC4245A, including features, description, pinout, etc.
The 74LVC4245A is an octal dual‑supply translating transceiver with 3‑state outputs, designed to interface between 3 V and 5 V buses. It features low‑power CMOS technology, direct TTL compatibility, and an output‑enable input for cascading.
Key sections include product specifications, pinning details, recommended operating conditions, DC and AC characteristics, and ordering information. The document also lists worldwide Philips Semiconductors contact addresses.
| 3 V port supply voltage range | 1.5 V to 3.6 V |
|---|---|
| 5 V port supply voltage range | 1.5 V to 5.5 V |
| Propagation delay (typical) | 4.0 ns |
| Input/output capacitance (Cio) | 10.0 pF |
The 3 V port operates from 1.5 V up to 3.6 V.
Typical propagation delay is about 4.0 ns.
