V175ME10-LF is a low cost high performance voltage controlled oscillator with a frequency range of 150-200MHz, an output voltage range of 0.5-4.5Vdc, an output power of 10dBm, an input capacitance of 50pF, and a load impedance of 550 ohms.

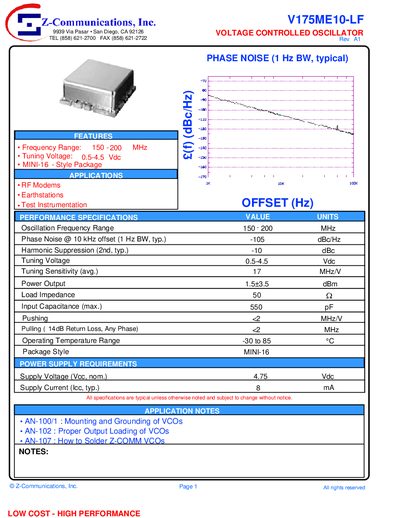

The V175ME10-LF is a voltage‑controlled oscillator covering a frequency range of 150 MHz to 200 MHz. It features a tuning voltage of 0.5‑4.5 Vdc, a MINI16‑style package, and is suited for RF modules, earth stations, and test instrumentation.
The handbook lists performance specifications such as phase noise of –105 dBc/Hz at a 10 kHz offset, harmonic suppression of –10 dBc (2nd order), and a power output of 1.5 + 3.5 dBm. Operating temperature spans –30 °C to 85 °C, with a supply voltage of 4.75 Vdc and typical supply current of 8 mA.
| Oscillation Frequency Range | 150 - 200 MHz |
|---|---|
| Phase Noise @ 10 kHz offset | -105 dBc/Hz |
| Harmonic Suppression (2nd order) | -10 dBc |
| Tuning Voltage | 0.5-4.5 Vdc |
| Tuning Sensitivity (average) | 17 MHz/V |
| Power Output | 1.5+3.5 dBm |
| Supply Voltage (Vcc, nominal) | 4.75 Vdc |
| Supply Current | 8 mA |
| Operating Temperature Range | -30 to 85 °C |
| Package Style | MINI16 |
| Input Capacitance (max) | 550 pF |
The V175ME10-LF operates from 150 MHz to 200 MHz.
Typical phase noise is –105 dBc/Hz at a 10 kHz offset.
It requires a nominal supply voltage of 4.75 Vdc.
The tuning voltage range is 0.5 V to 4.5 Vdc.
