The PCA0163A is a low cost, high performance phase locked loop (PLL) operating at 163.84 MHz.

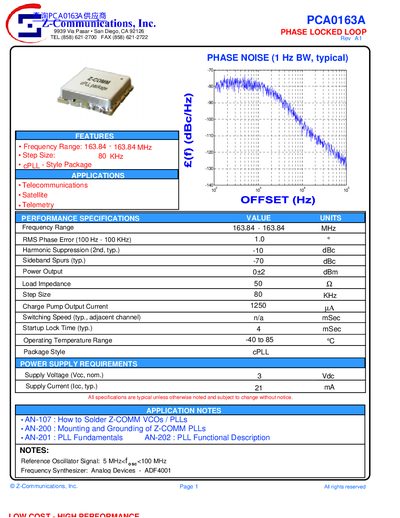

This document is a datasheet for the Z-Communications PCA0163A, a Phase Locked Loop (PLL) module designed for telecommunications and satellite telemetry applications. It provides typical performance specifications including frequency range, phase error, and power output.
| Frequency Range | 163.84 - 163.84 MHz |
|---|---|
| Step Size | 80 KHz |
| RMS Phase Error | 1.0 ° |
| Harmonic Suppression | -10 dBc |
| Sideband Spurs | -70 dBc |
| Power Output | +2 dBm |
| Load Impedance | 50 Q |
| Charge Pump Output Current | 1250 uA |
| Startup Lock Time | 4 mSec |
| Operating Temperature Range | -40 to 85 °C |
| Supply Voltage | 3 Vdc |
| Supply Current | 21 mA |
The device is suitable for telecommunications, satellite, and telemetry applications.
The typical RMS phase error is 1.0 degrees between 100 Hz and 100 KHz.
The nominal supply voltage (Vcc) required is 3 Vdc.
