The SMV0165L is a low cost, high performance voltage controlled oscillator (VCO) from Z-Communications. It has a frequency range of 160-165 MHz, a tuning voltage of 1-4 Vdc, an output power of -10 dBm, an input capacitance of <0.1 pF, and an output impedance of 500 Ω.

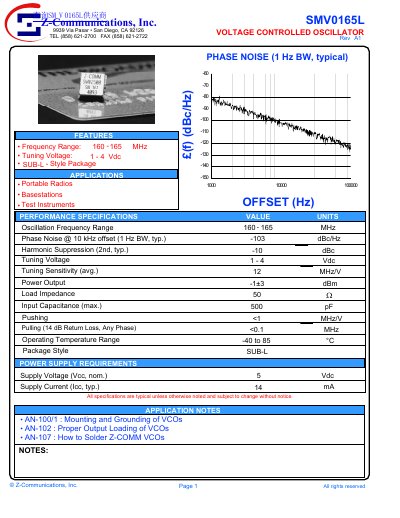

This document is a datasheet for the Z-Communications SMV0165L Voltage Controlled Oscillator (VCO). It lists key performance specifications such as a frequency range of 160-165 MHz, a tuning voltage of 1-4 Vdc, and a phase noise of -103 dBc/Hz at a 10 kHz offset. The device is designed for applications including portable radios, base stations, and test instruments.
| Frequency Range | 160-165 MHz |
|---|---|
| Phase Noise | -103 dBc/Hz |
| Tuning Voltage | 1-4 Vdc |
| Tuning Sensitivity | 12 MHz/V |
| Power Output | -143 dBm |
| Load Impedance | 50 Q |
| Supply Voltage | 5 Vdc |
| Supply Current | 14 mA |
| Operating Temperature Range | -40 to 85 °C |
The tuning voltage range is 1-4 Vdc.
The typical phase noise is -103 dBc/Hz.
