SMV1960L is a low-cost, high-performance voltage controlled oscillator with a frequency range of 1-4 MHz, tuning voltage of 1-4 Vdc, and output power of 50 dBm.

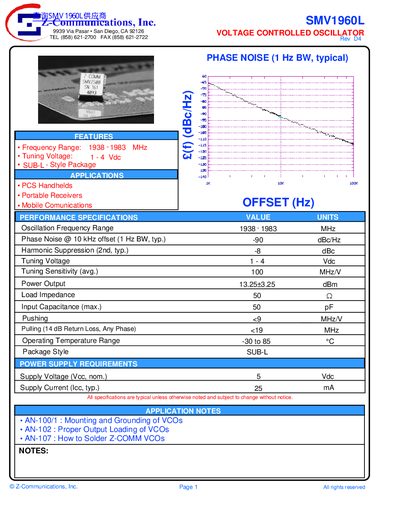

This document is a technical datasheet for the Z-Communications SMV1960L Voltage Controlled Oscillator (VCO). It details key features such as an oscillation frequency range of 1938 to 1983 MHz and a tuning voltage of 1-4 Vdc. The device operates with a typical supply current of 25 mA at 5 Vdc.
| Oscillation Frequency Range | 1938 - 1983 MHz |
|---|---|
| Phase Noise @ 10 kHz offset | -90 dBc/Hz |
| Tuning Voltage | 1-4 Vdc |
| Power Output | 13.25 dBm |
| Supply Voltage (Vcc) | 5 Vdc |
| Operating Temperature Range | -30 to 85 °C |
The average tuning sensitivity is 100 MHz/V.
The device operates within a frequency range from 1938 to 1983 MHz.
The tuning voltage must be between 1 and 4 Vdc.
