This document describes the features and characteristics of the V180ME01 RF Modems Earthstations Mobile Radios 5 20 4±4 145 215 1-9.5 13 -108 -5 <2 <5 100 50 -40 to 85 - Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.) Pushing Pulling (14 dB Return Loss, Any Phase) Operating Temperature Range Package Style MINI-14S MHz dBc/Hz dBc Vdc MHz/V dBm pF MHz/V MHz °C Vdc mA Supply Voltage (Vcc, nom.) Supply Current (Icc, typ.).

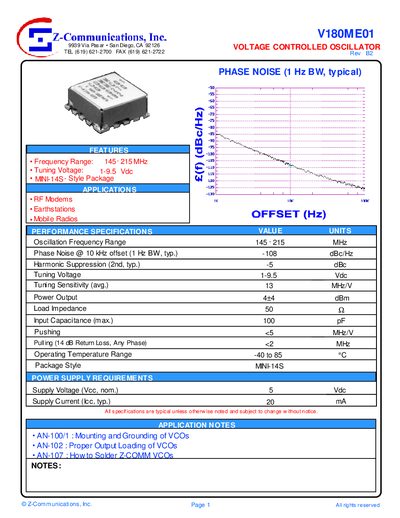

This document is a technical datasheet for the Z-Communications V180ME01 Voltage Controlled Oscillator (VCO). It provides key performance specifications including an oscillation frequency range of 145-215 MHz, a tuning voltage of 1-9.5 Vdc, and typical phase noise characteristics.
The datasheet includes detailed application notes regarding mounting, grounding, output loading, and soldering techniques for the MINF14S style package. It also features a graphical representation of frequency versus tuning voltage.
| Oscillation Frequency Range | 145-215 MHz |
|---|---|
| Tuning Voltage | 1-9.5 Vdc |
| Phase Noise @ 10 kHz offset | -108 dBe/Hz |
| Power Output | 4+4 dBm |
| Load Impedance | 50 Q |
| Supply Voltage (Vcc) | 5 Vdc |
| Operating Temperature Range | -40 to 85 °C |
The average tuning sensitivity is 13 MHz/V.
Recommended notes include AN-100/1 for mounting, AN-102 for output loading, and AN-107 for soldering.
