This document describes the low cost and high performance features of V180ME01-LF RF Modems Earthstations Mobile Radios, including frequency range, tuning voltage, power output, etc.

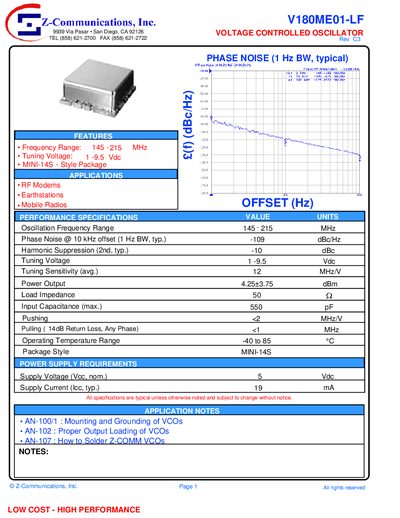

This document is a technical datasheet for the Z-Communications V180ME01-LF Voltage Controlled Oscillator (VCO). It provides key performance specifications such as an oscillation frequency range of 145 to 215 MHz, a tuning voltage of 1 to 9.5 Vdc, and typical phase noise of -109 dBc/Hz at a 10 kHz offset.
The document includes graphical representations of the typical tuning curve and power output versus frequency at different temperatures (-40°C and +25°C). It also details the physical dimensions and pin configuration for the MINI-14S style package.
| Oscillation Frequency Range | 145 - 215 MHz |
|---|---|
| Phase Noise @ 10 kHz offset | -109 dBc/Hz (typ.) |
| Tuning Voltage | 1 - 9.5 Vdc |
| Power Output | 4.25+3.75 dBm |
| Supply Voltage (Vcc) | 5 Vdc |
The unit requires a tuning voltage between 1 and 9.5 Vdc.
The maximum stated input capacitance is 550 pF.
