The document describes the features and characteristics of the V585ME05 Satellite Communications Test Instrumentation Earthstations.

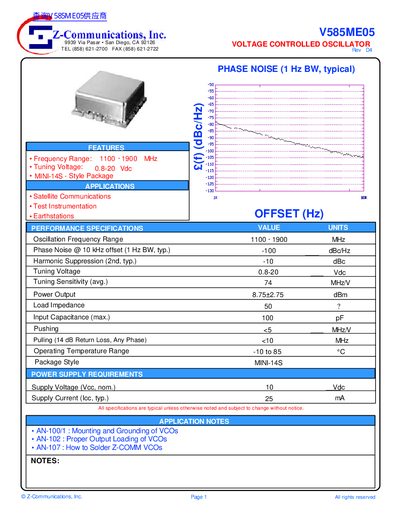

This document is a datasheet for the Z-Communications V585ME05 Voltage Controlled Oscillator (VCO). It lists key features such as a frequency range of 1100-1900 MHz and a tuning voltage of 0.8-20 Vdc. The device is designed for applications including satellite communications and test instrumentation.
| Frequency Range | 1100 - 1900 MHz |
|---|---|
| Phase Noise | -100 dBe/Hz |
| Tuning Sensitivity | 74 MHz/V |
| Load Impedance | 50 Ohms |
| Supply Current | 25 mA |
| Operating Temperature | -10 to 85 °C |
The typical phase noise is -100 dBe/Hz at a 1 Hz bandwidth.
The oscillator operates within a frequency range of 1100 to 1900 MHz.
The device requires a tuning voltage between 0.8 and 20 Vdc.
The typical phase noise is -100 dBe/Hz at a 10 kHz offset.
