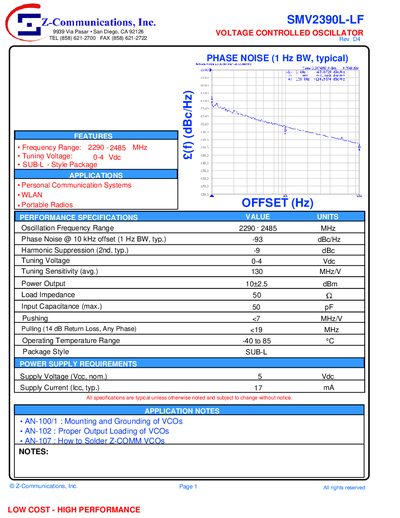

SMV2390L-LF is a low cost high performance VCO produced by Z-Communications, Inc. The frequency range is 2290 - 2485 MHz, the tuning voltage is 0-4 Vdc, the output power is -93 dBm, the load impedance is 50 ohms, and the input capacitance is 50 pF.
The SMV2390L-LF is a voltage‑controlled oscillator (VCO) designed for personal communication systems, WLAN, and portable radios. It offers a compact SUB‑L package and operates over a wide frequency range.
Key specifications include a 2290‑2485 MHz tuning range, 0‑4 V tuning voltage, typical phase noise of –93 dBc/Hz at 10 kHz offset, and a 5 V supply voltage with 17 mA current draw. The device is rated for –40 °C to 85 °C operation and includes detailed mounting and grounding notes.
| Frequency Range | 2290 - 2485 MHz |
|---|---|
| Tuning Voltage | 0-4 Vdc |
| Phase Noise @ 10 kHz offset | -93 dBc/Hz |
| Harmonic Suppression (2nd, typ.) | -9 dBc |
| Tuning Sensitivity (avg.) | 130 MHz/V |
| Power Output | 10.42 dBm |
| Load Impedance | 50 Ω |
| Input Capacitance (max.) | 50 pF |
| Operating Temperature Range | -40 to 85 °C |
| Supply Voltage (Vcc, nominal) | 5 Vdc |
| Supply Current (Icc, typical) | 17 mA |
| Package Style | SUB-L |
It covers 2290 MHz to 2485 MHz.
The device operates from a nominal 5 V supply.
Typical phase noise is –93 dBc/Hz at a 10 kHz offset.
