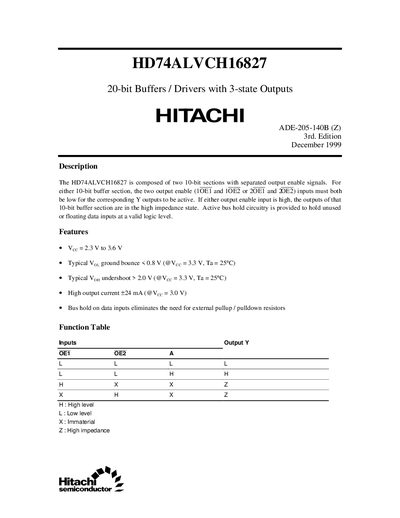

HD74ALVCH16827 is a 20-bit buffer/driver with 3-state outputs. It is composed of two 10-bit sections with separated output enable signals. For either 10-bit buffer section, the two output enable (1OE1 and 1OE2 or 2OE1 and 2OE2) inputs must both be low for the corresponding Y outputs to be active. If either output enable input is high, the outputs of that 10-bit buffer section are in the high impedance state. Active bus hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
The HD74ALVCH16827 is a 20‑bit buffer/driver with two independent 10‑bit sections and separate output‑enable signals. It offers high output current, bus‑hold on inputs, and operates from a supply voltage of 2.3 V to 3.6 V under recommended conditions.
The document includes pin arrangement, absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, waveform examples, package dimensions, and safety cautions for designers integrating the device into their circuits.
