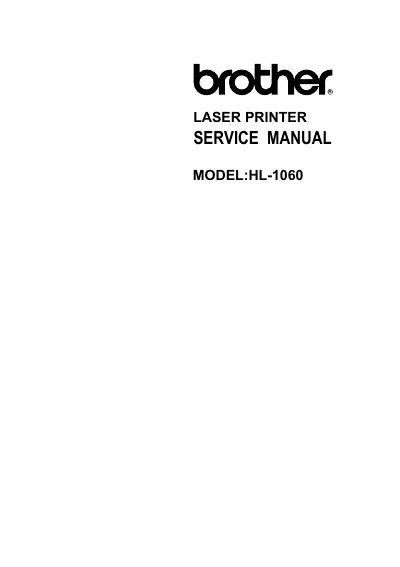

This is a service manual for the Brother HL-1060 R laser printer
This service manual provides detailed information for after‑sales service of the Brother HL‑1060 laser printer, including features, specifications, theory of operation, and safety precautions. It is intended for technicians who need to maintain print quality and performance.
The manual contains chapters on disassembly and reassembly, maintenance and troubleshooting, as well as extensive appendices with serial‑number descriptions, connection diagrams and PCB circuit diagrams.
| Resolution | 1200 dpi |
|---|---|
| Printing speed | 10 pages per minute |
| Sleep mode power consumption | < 13 W |
| Toner cartridge replacement interval | ≈ 2,200 pages |
The HL‑1060 prints at 10 pages per minute.
In sleep mode the printer consumes less than 13 W.
The toner cartridge should be replaced after about 2,200 pages.
