This manual introduces the drive performance, connectors, power supply, operating temperature and humidity, storage temperature and humidity of PCGA-DSD5/DSM5 CD-RW/DVD Docking Station and PCGA-DSD5 DVD Docking Station.

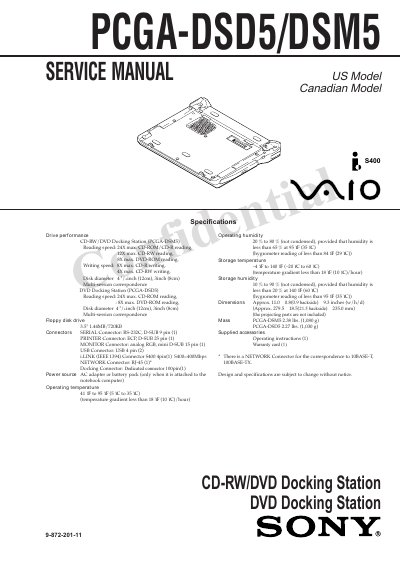

This service manual provides detailed information for the Sony PCGA‑DSM5 and PCGA‑DSD5 CD‑RW/DVD docking stations. It includes general safety precautions, connector descriptions, performance specifications, and step‑by‑step removal and replacement procedures.
The document also contains exploded views, parts lists, and wiring diagrams to assist technicians in diagnosing faults and performing maintenance on the docking station.
| CD‑ROM reading speed | 24X max. |
|---|---|
| DVD‑ROM writing speed | 8X max. |
| Dimensions | Approx. 11.0 × 0.8 × 9.3 inches (279.5 × 18.5 × 235.0 mm) |
| Mass (PCGA‑DSM5) | 2.38 lbs (1,080 g) |
| Operating temperature range | 41 °F to 95 °F (5 °C to 35 °C) |
The CD‑ROM can be read at up to 24X speed.
It can be powered by an AC adapter or a battery pack when attached to a notebook.
Store the docking station between –4 °F and 140 °F (–20 °C to 60 °C).
