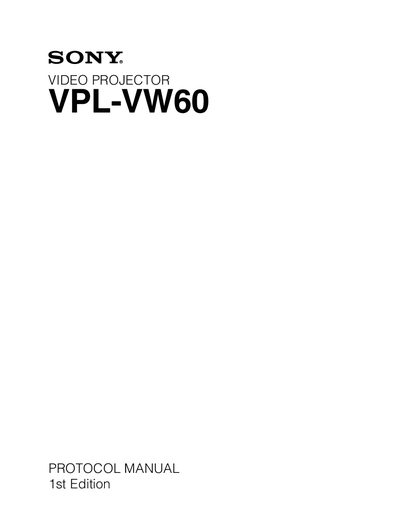

This manual is the communication protocol manual for the Sony VPL-VW60 projector. It mainly includes RS-232C communication specifications, command block format, connection, communication process, communication rules, approximate return waiting time and other content.
This protocol manual is intended for qualified service personnel only and describes the RS‑232 communication interface used to control the Sony VPL‑VW60 video projector. It warns that improper use may cause electric shock, fire, or injury.
The document covers communication specifications such as baud rate and signal format, the command block structure, wiring details for a D‑Sub 9‑pin cross cable, and the step‑by‑step communication procedure between a controller and the projector.
| Communication mode | Full duplex |
|---|---|
| Synchronization | Start‑stop synchronism system |
| Cable length | 15 m |
