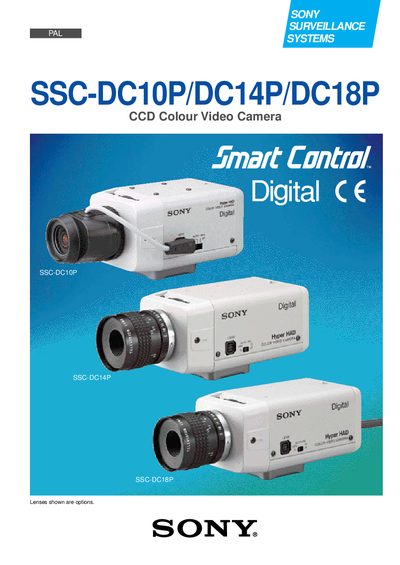

SONY SSC-DC10P/DC14P/DC18P CCD Color Video Camera, with 1/3-inch color DSP CCD high resolution sensor, features automatic white balance, automatic aperture, automatic exposure, etc., suitable for video surveillance system
The SSC-DC10P, SSC-DC14P and SSC-DC18P are 1/3‑inch Interline Transfer Hyper HAD CCD colour video cameras designed for PAL surveillance systems. They feature Smart Control, Turbo AGC, ATW Pro white‑balance, Aperture Sharp mode and electronic CCD IRIS for high‑quality images in low‑light conditions.
The manual covers three installation modes (triple‑multiplexing, AC line‑lock and 12 V DC), optional YS‑W150P/W250P camera adaptors, lens options, wiring diagrams and detailed technical specifications. It also lists power requirements, temperature ranges, cable‑run limits and accessory part numbers.
| Image device | 1/3-inch Interline Transfer Hyper HAD CCD |
|---|---|
| Picture elements | 752(H) x 582(V) |
| Sensing area | 3.3 x 4.4 mm (1/3-inch) |
| Signal system | PAL standard |
| Horizontal resolution | 470 TV lines |
| Phase control | H +0.25H, V +90° |
| Lens mount | C/CS mount adjustable |
| Signal‑to‑noise ratio | > 50 dB (Weight ON, AGC OFF) |
| Power consumption | 4.0 W (YS‑W adapters) / 3.0 W (DC 12 V) |
| Dimensions | ≈42 × 52 × 47 mm (camera body) |
Up to 600 m (1968 ft) using RG‑11A/U coaxial cable.
The cameras deliver a horizontal resolution of 470 TV lines.
