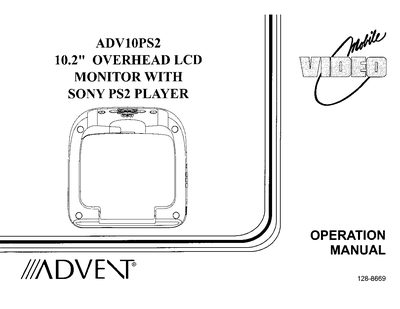

This manual provides installation instructions for the ADVI0PS2 10.2-inch overhead LCD monitor with Sony PS2 player
This manual covers the safe installation and use of the ADV10PS2 vehicle‑mounted entertainment system. It includes important safety notices for wiring, battery connections, and proper mounting to avoid interference with vehicle airbags and to protect the LCD screen.
The guide also describes the system’s features such as the 10.2" TFT LCD, built‑in PlayStation 2 console, wireless controllers, FM modulator, and remote control functions, and provides step‑by‑step quick‑start procedures for operating the player, headphones, and FM radio.
| Display size | 10.2" TFT Active Matrix LCD |
|---|---|
| Built‑in console | Sony PlayStation 2 game console |
| Wireless controllers | 2 Sony PlayStation 2 wireless game controllers |
| Remote control | Full function remote control |
| Headphone support | Infrared transmitter for IR wireless headphones, 2 wireless IR headphones |
| Audio/video inputs | PS2, AV1, AUX |
| Audio/video output | RCA pigtail |
| Dome lights | 3‑position switch (ON, OFF, AUTO) |
| FM modulator | Built‑in 16‑channel wireless FM modulator |
| Screen mode selection | 4:3, 16:9 |
| Backlit controls | Yes |
| Media playback | DVD, CD, PlayStation 2 games |
Press the screen release button to lower the LCD screen.
Press the FMM ON/OFF button on the remote control to enable the FM modulator.
Press the green RESET key on the remote control or the PlayStation 2.
Press the “Force Link” button on each game controller.
