3S4YR-SCR0J is Omron's IC card connector, supports ISO 7816 chip, suitable for ID control, access control, attendance control, electronic purse system and other scenarios.

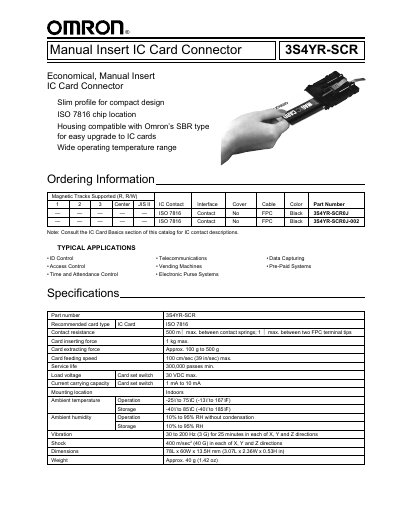

The 3S4YR-SCR is a manual‑insert IC card connector designed for ID control, access control, time‑and‑attendance, and electronic purse systems. It complies with ISO 7816 and fits Omron’s SBR housing for easy upgrades.
Key specifications include a contact resistance of 500 mΩ max, card inserting force up to 1 kg, operating temperature from –25 °C to 75 °C, and a compact size of 78 × 60 × 13.5 mm. The connector supports a load voltage of 30 VDC and a current carrying capacity of 1 mA to 10 mA.
| Contact resistance | 500 mΩ max |
|---|---|
| Card inserting force | 1 kg max |
| Card extracting force | 100 g to 500 g |
| Service life | 300,000 passes min |
| Load voltage | 30 VDC max |
| Operating temperature | -25 °C to 75 °C |
| Dimensions | 78 × 60 × 13.5 mm |
| Weight | ≈ 40 g |
| Current carrying capacity | 1 mA to 10 mA |
The connector is recommended for ISO 7816 IC cards.
The connector operates from –25 °C to 75 °C.
The connector measures 78 mm length, 60 mm width, and 13.5 mm height.
