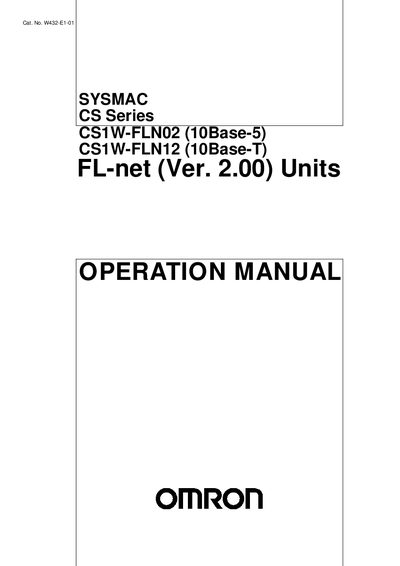

This operation manual provides information on the use and precautions of OMRON's CS1W-FLN02 (10Base-5) and CS1W-FLN12 (10Base-T) FL-net (Ver. 2.00) units. These units are products for OMRON's SYSMAC CS Series controllers.
The manual is intended for qualified operators and engineers who install, configure, and maintain OMRON FL‑net (Ver. 2.00) units. It covers safety precautions, system configuration, communication functions, and troubleshooting procedures.
Key sections include safety symbols, system setup, data link configuration, FINS communications, timing calculations, testing functions, and the FL‑net Unit Support Tool. Contact information for OMRON offices worldwide is provided at the end of the document.
The FL‑net Unit Support Tool provides overview, installation steps, computer‑to‑PLC connection guidance, and functions for configuring and testing the FL‑net units.
