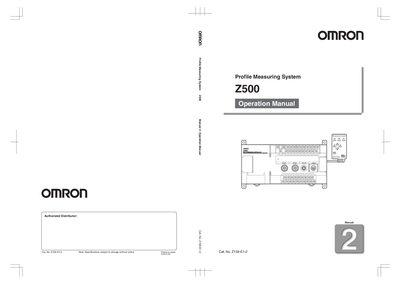

This document is the operation manual for the Profile Measuring System Z500, describing the installation and operation of the Z500 hardware.
This operation manual covers the hardware description, installation steps and basic operation of the Omron Z500 profile measuring system. It details menu navigation for both Conversational and Expert modes, system settings, and communication interfaces.
Safety precautions, regulatory compliance, and troubleshooting guidance are also provided, ensuring proper use in critical applications and safe handling of the equipment.
| Peak/bottom measurement width | 99 |
|---|---|
| Peak‑peak Hold | 84 |
| Position compensation | 64 |
| Profile display | 34 |
| Profile Monitor | 33, 121 |
The manual uses symbols A (imminently hazardous), WARNING (potentially hazardous) and CAUTION (potentially hazardous) to indicate safety levels.
It provides inputs and outputs via terminal blocks or an RS‑232C interface as described in the VO Format section.
Measurement conditions can be set using the Conversational Menu for basic settings or the Expert Menu for customized settings such as position compensation.
