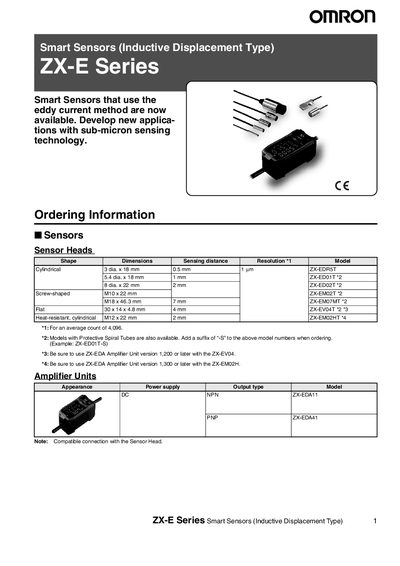

ZX-E Series Smart Sensors (Inductive Displacement Type) that use the eddy current method are now available. Develop new applications with sub-micron sensing technology.
The ZX‑E Series smart sensors are inductive displacement type devices for sub‑micron sensing applications. The manual covers model variants such as ZX‑EDR5T, ZX‑EDO1T, ZX‑EM02T and others, describing their dimensions, measurement ranges and performance characteristics.
It also details the accompanying accessories, including amplifier units (ZX‑EDA11, ZX‑EDA41), calculating units, cables and mounting brackets, and provides wiring diagrams, installation notes, warranty information and safety precautions.
| Resolution | *1 for average count of 4,096 |
|---|---|
| Ambient temperature (sensor head) | 0 to 50°C (no icing or condensation) |
| Power supply voltage | 12 to 24 VDC |
| Current consumption | 140 mA max. (24 VDC supply) |
| Weight (packed) | Approx. 120 g |
The amplifier units operate from a 12 to 24 VDC power supply.
Sensor heads can be used from 0 °C to 50 °C without icing or condensation.
The amplifier unit allows average count settings up to 4,096.
