SPM3214 is a RF switch from SANYO with low insertion loss and high isolation. It has a control voltage of +3 / 0V and is packaged in MCPH6. The maximum operating temperature is 70℃.

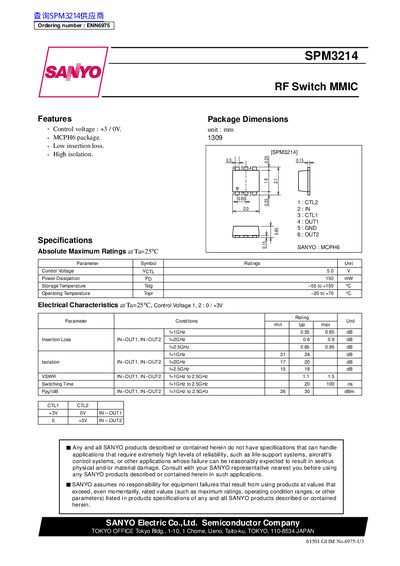

The Sanyo SPM3214 is an RF Switch MMIC offered in a MCPH6 package. It features a control voltage of +3 V/0 V, low insertion loss, and high isolation. The document lists absolute maximum ratings, package dimensions, and electrical characteristics for frequencies up to 2.5 GHz.
Key specifications include control voltage, power dissipation, temperature ranges, insertion loss, isolation, VSWR, and switching time. An application circuit and performance graphs illustrate typical behavior across the operating frequency band.
| Control Voltage | 5.0 V |
|---|---|
| Power Dissipation | 150 mW |
| Storage Temperature | -55 °C to +150 °C |
| Operating Temperature | -20 °C to +70 °C |
| Insertion Loss (typ) at 1 GHz | 0.85 dB |
| Insertion Loss (typ) at 2 GHz | 0.9 dB |
| Isolation at 2 GHz | 17 dB (min) |
| Switching Time | 20 ns to 100 ns |
The control voltage is 5.0 V.
It operates from –20 °C to +70 °C.
Typical insertion loss at 2 GHz is about 0.9 dB.
Isolation is at least 17 dB at 2 GHz.
