This document introduces the PNP epitaxial planar silicon composite transistor switching application product from SANYO Electric Co., Ltd., which has built-in bias resistors and thermal equilibrium capability.
The FC105 is a Sanyo PNP epitaxial planar silicon composite transistor that integrates two transistors in a single CP package, offering high thermal equilibrium and pair capability. It is intended for switching applications and includes on‑chip bias resistors.

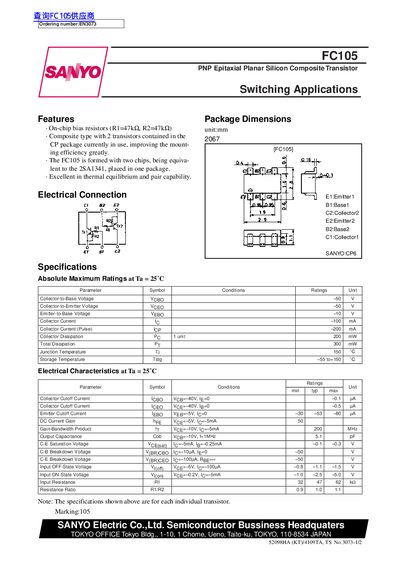

The datasheet lists absolute maximum ratings, electrical characteristics, and a sample application circuit. It also contains legal disclaimer information and notes on the intended use of the device.
| Collector-to-Base Voltage (VcBo) | 50 V |
|---|---|
| Collector-to-Emitter Voltage (VCEO) | 50 V |
| Emitter-to-Base Voltage (VEBO) | 10 V |
| Collector Current (Io) | 100 mA |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tstg) | -55 to +150 °C |
The FC105 can handle a continuous collector current of 100 mA.
The transistor is packaged in a CP (Composite) package that contains two transistors.
Yes, the datasheet includes a sample application circuit showing input ON‑state and OFF‑state voltages.
