3SK264 is a N-Channel Silicon MOSFET VHF Tuner, High-Frequency Amplifier from SANYO. It features easy AGC (cut off at VG2S=0V), small noise figure and excels in cross modulation characteristics.

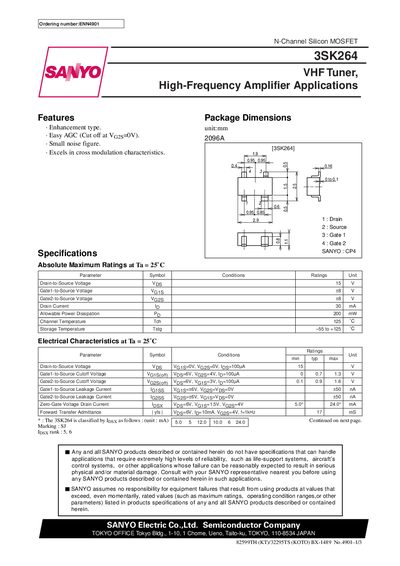

The SANYO 3SK264 is an N‑channel silicon MOSFET intended for VHF tuner and high‑frequency amplifier applications. The document provides ordering information, key features, package dimensions, and detailed electrical characteristics.
It includes absolute maximum ratings, typical performance parameters such as drain‑to‑source voltage, gate voltages, current limits, power dissipation, and capacitances, as well as legal and safety notices from SANYO Electric Co., Ltd.
| Drain-to-Source Voltage (VDS) | 15 V |
|---|---|
| Gate1-to-Source Voltage (VGS1) | +8 V |
| Gate2-to-Source Voltage (VGS2) | +8 V |
| Drain Current (ID) | 30 mA |
| Power Dissipation (PD) | 200 mW |
| Maximum Channel Temperature | 125 °C |
| Storage Temperature Range | -55 °C to +125 °C |
The maximum drain‑to‑source voltage is 15 V.
Both gate‑to‑source voltages are limited to +8 V.
SANYO states the device should not be used in life‑support, aircraft control, or other high‑reliability systems without consulting a SANYO representative.
