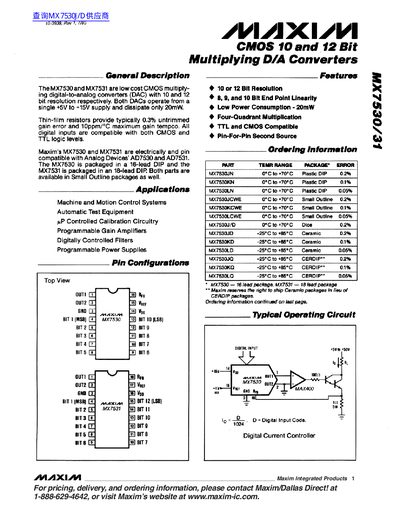

The file provides pricing, delivery, and ordering information for MX7530J/D
The MX7530 (10‑bit) and MX7531 (12‑bit) are CMOS multiplying digital‑to‑analog converters that operate from a single +5 V to +15 V supply and dissipate only about 20 mW. They feature thin‑film resistors with typical 0.3 % untrimmed gain error and 10 ppm/°C temperature coefficient, and are compatible with both TTL and CMOS logic levels.
The document lists absolute maximum ratings, detailed electrical characteristics, and typical application circuits for unipolar (2‑quadrant) and bipolar (4‑quadrant) operation. It also includes ordering information, package options, and guidelines for minimizing feedthrough and dynamic errors in high‑speed designs.
| Resolution | 10‑bit (MX7530) and 12‑bit (MX7531) |
|---|---|
| Supply Voltage | +5 V to +15 V |
| Power Dissipation | 20 mW |
| Gain Error | 0.3 % FSR |
| Nonlinearity Tempco | 2 ppm/°C |
| Package | 16‑lead DIP (MX7530), 18‑lead DIP (MX7531), also Small‑Outline and Ceramic options |
The device operates from a single supply of +5 V to +15 V.
Typical total power dissipation is 20 mW.
MX7530 is offered in a 16‑lead DIP and MX7531 in an 18‑lead DIP, with additional Small‑Outline and Ceramic packages also available.
The gain error is specified as 0.3 % of full‑scale range.
