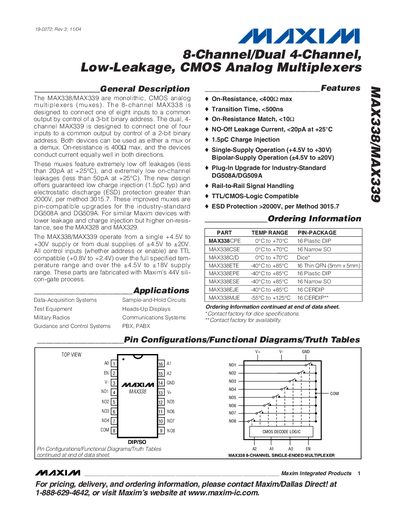

MAX338/MAX339 are monolithic, CMOS analog multiplexers (muxes)
The MAX338 and MAX339 are 8‑channel and dual 4‑channel CMOS analog multiplexers with extremely low off‑leakage (less than 20 pA at +25 °C) and low charge injection (1.5 pC typ). They support single‑supply operation from +4.5 V to +30 V or bipolar supplies from +4.5 V to +20 V and include ESD protection greater than 2000 V.
The data sheet provides detailed electrical characteristics, pin configurations, ordering information, package drawings, and test circuit diagrams to aid designers in integrating these devices into sample‑and‑hold circuits, data‑acquisition systems, and other applications.
| Transition Time | <500 ns |
|---|---|
| On‑Resistance Match | <10 Ω |
| Off‑Leakage Current | <20 pA at +25 °C |
| Charge Injection | 1.5 pC typ |
| Single‑Supply Voltage Range | +4.5 V to +30 V |
| Bipolar‑Supply Voltage Range | +4.5 V to +20 V |
| ESD Protection | >2000 V (Method 3015.7) |
Typical charge injection is 1.5 pC.
They operate from +4.5 V to +30 V on a single supply, or +4.5 V to +20 V with bipolar supplies.
Off‑leakage current is less than 20 pA at +25 °C.
