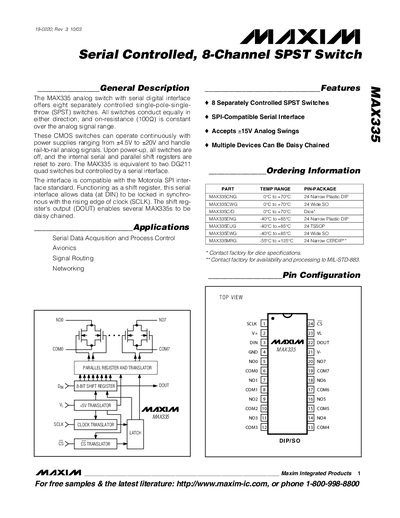

The MAX335 is a Maxim Integrated 8-channel SPST switch with SPI-compatible serial interface. It supports power supplies ranging from ±4.5V to ±20V and can handle rail-to-rail analog signals. Upon power-up, all switches are off and the internal serial and parallel shift registers are reset to zero.
The MAX335 is an analog switch with a serial digital interface that provides eight independently controlled SPST switches. All switches are off on power‑up and the device operates from +4.5 V to 20 V supply rails, handling rail‑to‑rail analog signals.
Key features include a Motorola‑compatible SPI/Microwire interface, daisy‑chain capability, selectable package options (24‑lead DIP, SO, TSSOP, etc.), and detailed electrical characteristics such as on‑resistance, leakage currents, and timing parameters.
| Number of Switches | 8 |
|---|
All switches are off and the internal shift register is cleared to zero.
The serial interface is compatible with the Motorola SPI interface standard.
Yes, multiple devices can be daisy‑chained and updated simultaneously.
