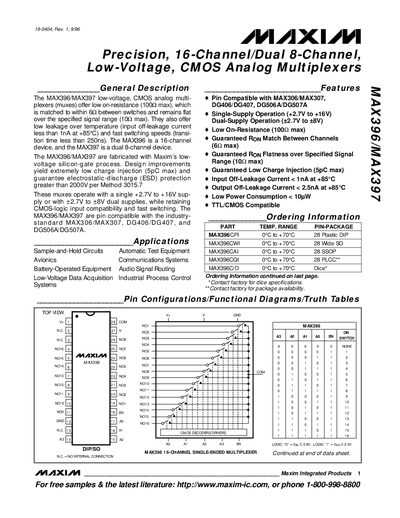

This document introduces the features and characteristics of MAX396/MAX397 low-voltage CMOS analog multiplexers (muxes), including low on-resistance, low leakage, fast switching speeds, ESD protection, supply voltage, applications, etc.
The MAX396 and MAX397 are low‑voltage CMOS analog multiplexers offering a 16‑channel (MAX396) or dual 8‑channel (MAX397) architecture. They feature low on‑resistance, low leakage, and fast switching, and are pin‑compatible with earlier Maxim devices such as the MAX306/MAX307.
The document details absolute maximum ratings, electrical characteristics for both dual‑supply and single‑supply operation, typical operating curves, pin descriptions, ordering information, and test circuit diagrams. It also includes over‑voltage protection recommendations and package options.
| Single‑Supply Voltage Range | +2.7 V to +16 V |
|---|---|
| Dual‑Supply Voltage Range | +2.7 V to +8 V |
| Charge Injection | ≤ 5 pC |
| Power Consumption | < 10 µW |
