ISL60002 is a low power precision analog voltage reference produced by Intersil, which has ultra-low static current (400nA), can work at a supply voltage of 2.7V to 5.5V, and has an initial accuracy of ±1.0mV and <<10ppm/√1kHrs long-term stability.

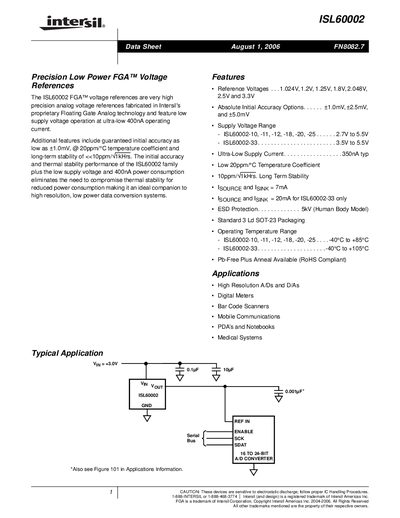

The ISL60002 is a precision low‑power FGA™ voltage reference designed for high‑resolution, low‑power data‑conversion systems. It offers multiple reference voltages, ultra‑low supply current, and tight temperature coefficients.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical specifications, typical performance curves, application circuits, and packaging dimensions for the 3‑lead SOT‑23 device.
| Reference Voltages | 1.024V, 1.2V, 1.25V, 1.8V, 2.048V, 2.5V, 3.3V |
|---|---|
| Ultra‑Low Supply Current | 350 nA typ |
| Temperature Coefficient | 20 ppm/°C |
| ESD Protection | 5 kV (Human Body Model) |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -65°C to +150°C |
The device draws an ultra‑low supply current of 350 nA typical.
The part can be stored from –65 °C up to +150 °C.
It is rated for 5 kV protection under the Human Body Model.
Available reference voltages are 1.024 V, 1.2 V, 1.25 V, 1.8 V, 2.048 V, 2.5 V and 3.3 V.
