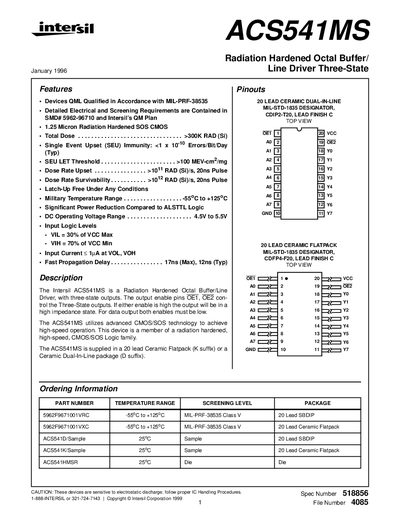

This datasheet provides information on the features, package, pinout, etc. of Intersil ACS541MS Octal Buffer/Line Driver Three-State
The ACS541MS is a radiation‑hardened octal buffer/line driver with three‑state outputs, designed for high‑speed operation using SOS CMOS technology. It offers low power consumption, latch‑up free operation, and a wide military temperature range.
The document includes detailed electrical characteristics, pinouts, functional diagrams, truth tables, ordering information for multiple package options, and die‑level specifications such as dimensions and metallization details.
| Radiation Hardened Technology | SOS CMOS |
|---|---|
| Input Low Logic Level (VIL) | 30% of VCC |
| Fast Propagation Delay (max) | 5–17 ns |
VIL is defined as 30 % of VCC.
