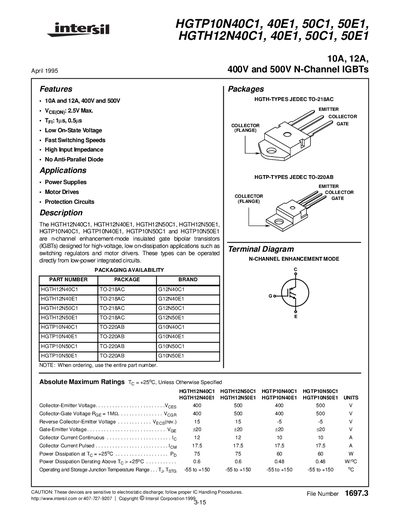

This document describes the features and characteristics of the HGTP10N40C1, 40E1, 50C1, 50E1 and HGTH12N40C1, 40E1, 50C1, 50E1 models of 10A, 12A, 400V and 500V N-Channel IGBTs, such as low on-state voltage, fast switching speeds, high input impedance, etc. These devices are suitable for power supplies, motor drives, and protection circuits.
The HGTP and HGTH series are N‑channel enhancement‑mode IGBTs designed for high‑voltage, low on‑dissipation applications such as switching regulators and motor drives. They are offered in 10 A (HGTP) and 12 A (HGTH) versions with 400 V and 500 V voltage ratings.
The datasheet lists absolute maximum ratings, detailed electrical specifications, typical performance curves, and thermal resistance values. Packaging options, ordering information, and contact details for Intersil worldwide sales offices are also provided.
The devices are sensitive to ESD and must be handled using proper electrostatic discharge procedures.
