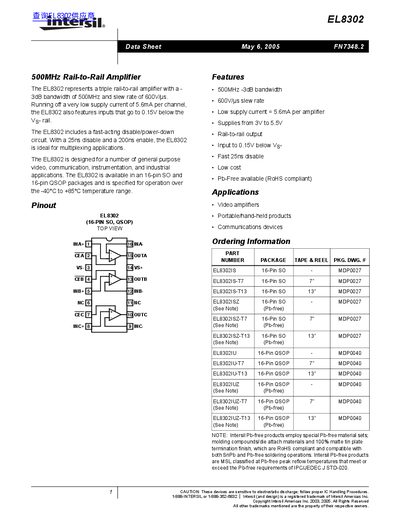

The EL8302 is a 500MHz triple rail-to-rail amplifier with a -3dB bandwidth of 500MHz and a slew rate of 600V/µs from Philips. It has a working current of 5.6mA per channel and an input range of 0.15V. It has a fast disable/power-down circuit and can be used in video amplifiers, portable/hand-held products, and communication devices.
The EL8302 is a triple rail‑to‑rail amplifier offering a -3 dB bandwidth of 500 MHz, a slew rate of 600 V/µs, and low supply current of 5.6 mA per channel. It includes a fast‑acting disable/power‑down circuit with 25 ns disable and 200 ns enable times, making it suitable for multiplexing applications in video, communications, instrumentation, and industrial fields.
The device is available in 16‑pin SO and 16‑pin QSOP packages, operates from 3 V to 5.5 V, and is rated for -40 °C to +85 °C. The datasheet details absolute maximum ratings, electrical specifications, pin functions, and typical performance curves.
| -3 dB Bandwidth | 500 MHz |
|---|---|
| Slew Rate | 600 V/µs |
| Supply Current per Channel | 5.6 mA |
| Enable Time | 200 ns |
| Disable Time | 25 ns |
| Operating Temperature Range | -40 °C to +85 °C |
| Supply Voltage Range | 3 V to 5.5 V |
The enable time is 200 ns.
Each channel draws 5.6 mA of supply current.
The amplifier has a -3 dB bandwidth of 500 MHz.
It operates from –40 °C to +85 °C.
