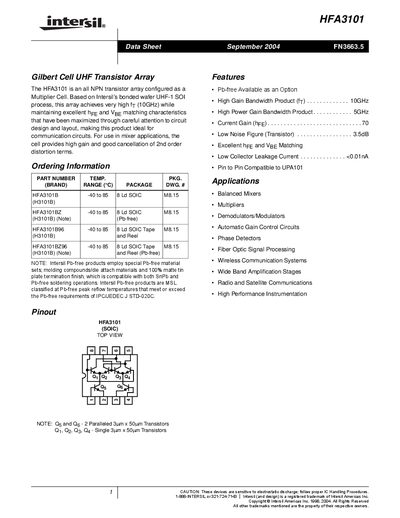

The HFA3101 is an all NPN transistor array configured as a Multiplier Cell. Based on Intersil’s bonded wafer UHF-1 SOI process, this array achieves very high fT (10GHz) while maintaining excellent hFE and VBE matching characteristics that have been maximized through careful attention to circuit design and layout, making this product ideal for communication circuits. For use in mixer applications, the cell provides high gain and good cancellation of 2nd order distortion terms.
The HFA3101 is an all‑NPN Gilbert‑cell UHF transistor array designed for high‑gain, high‑bandwidth multiplier and mixer applications. It offers a 10 GHz gain‑bandwidth product, low noise, and low collector leakage, making it suitable for balanced mixers, modulators, phase detectors, and frequency converters.
The datasheet includes features, ordering information, pinout diagrams, absolute maximum ratings, electrical specifications, PSPICE models, S‑parameter data, biasing schemes, design examples, stability guidelines, and evaluation results. It also outlines typical applications such as balanced mixers, up/down converters, and phase detection circuits.
| High Gain Bandwidth Product (fT) | 10 GHz |
|---|---|
| High Power Gain Bandwidth Product | 5 GHz |
| Low Collector Leakage Current | <0.01 nA |
| Operating Temperature Range | -40 °C to 85 °C |
The device operates from –40 °C to 85 °C.
The collector leakage current is less than 0.01 nA.
The high gain bandwidth product is 10 GHz.
