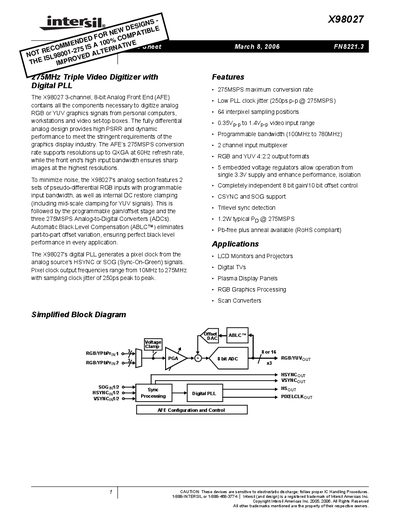

The X98027 275MHz Triple Video Digitizer with Digital PLL
The X98027 is a 3‑channel, 8‑bit analog front‑end video digitizer that converts RGB or YUV graphics signals from PCs, workstations, and set‑top boxes. It features a digital PLL that generates a pixel clock from HSYNC or SOG signals, supporting resolutions up to QXGA at 60 Hz.
Key features include a 275 MSPS conversion rate, programmable input bandwidth, automatic black‑level compensation, and a 128‑lead MQFP package. The document lists electrical specifications, pin assignments, serial‑bus interface details, and recommended operating conditions for designers.
| Maximum conversion rate per channel | 275 MSPS |
|---|---|
| Input voltage range | 0.35 V to 1.4 V p‑p |
| PLL clock jitter | 250 ps p‑p |
| Typical power consumption at 275 MSPS | 1.2 W |
| Supply voltage | 3.3 V |
| Package type | 128‑lead MQFP |
The X98027 can convert video signals at up to 275 MSPS per channel.
It accepts video input voltages from 0.35 V to 1.4 V peak‑to‑peak.
The PLL can output pixel clocks from 10 MHz up to 275 MHz.
All supply rails (analog, digital, crystal) operate at 3.3 V.
